What Is the Difference Between Fully Automatic and Semi-Automatic Hydraulic Butt Fusion Machines?
The differences can be understood from two main aspects: operation and machine structure.
1. Operational Differences

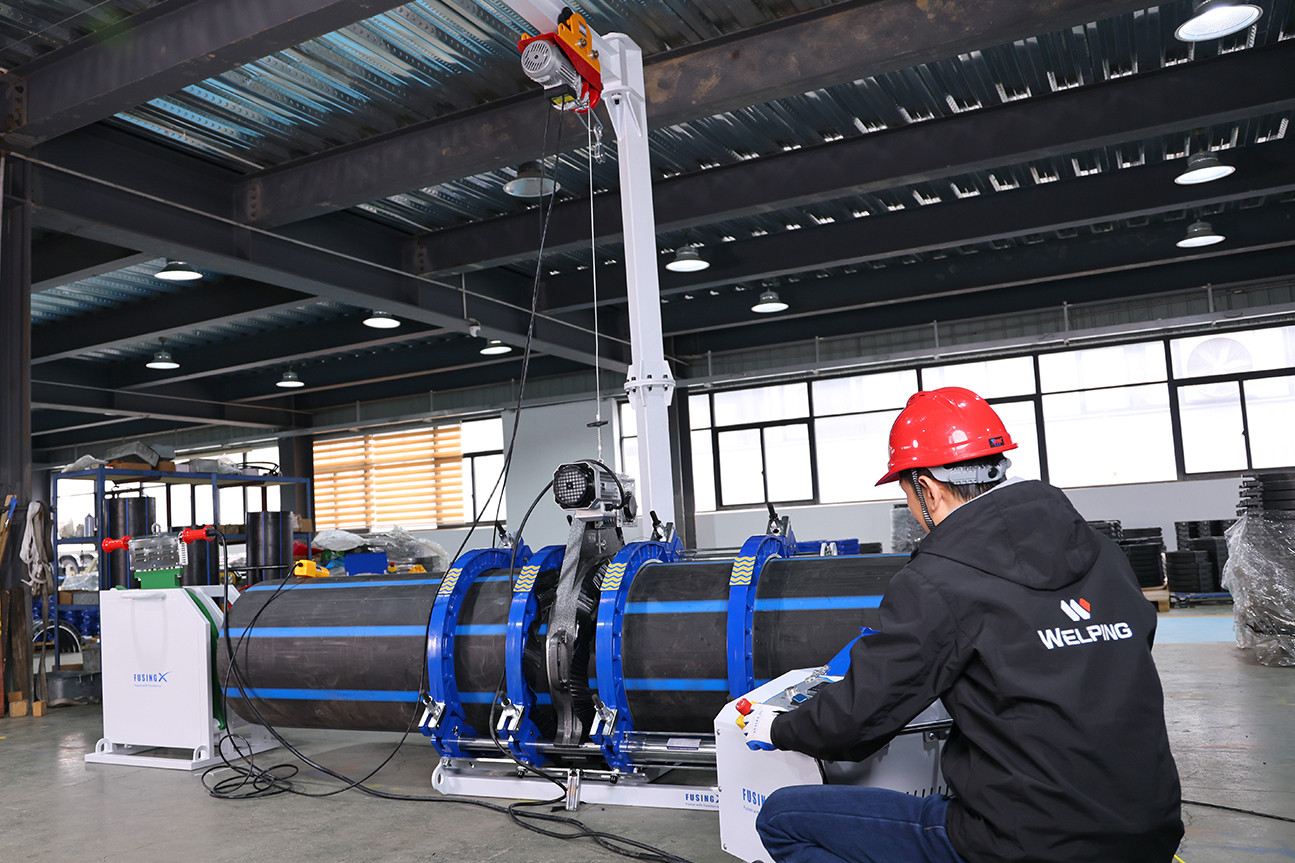

Fully Automatic Hydraulic Butt Fusion Machine
A fully automatic machine operates through a guided interface on an LCD screen.
The welding process—facing, heating, and fusion—is carried out step by step according to on-screen instructions.

The operator only needs to confirm the pipe size and specification.
All welding parameters such as temperature, pressure, and timing are set automatically by the machine.

After the heating cycle is completed, the heating plate retracts automatically, and the machine proceeds to the fusion stage without manual hydraulic intervention. Even operators with limited experience can complete the welding process by following the system prompts.

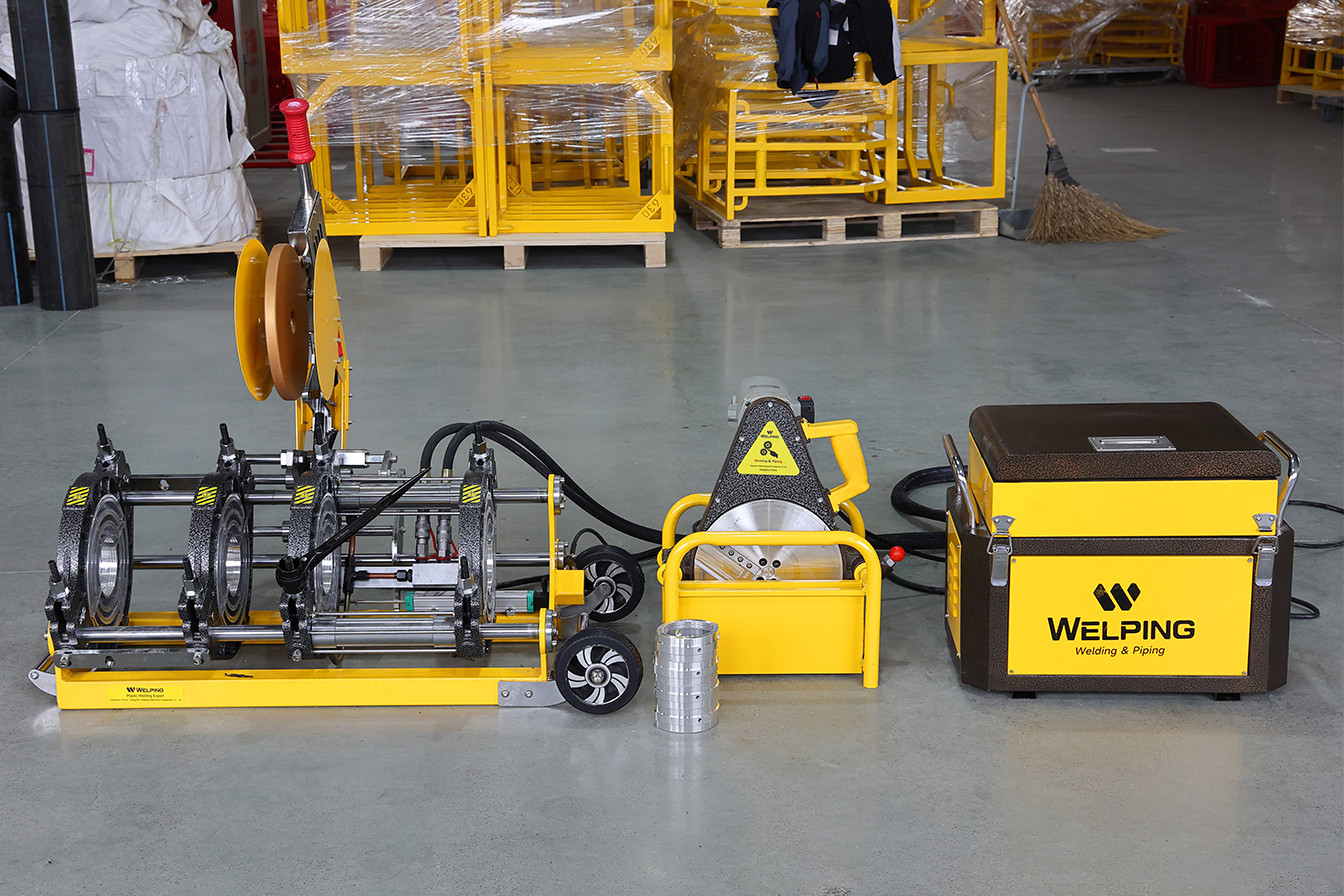

Semi-Automatic Hydraulic Butt Fusion Machine
In a semi-automatic machine, welding parameters must be set manually by the operator according to the operation manual.
Temperature, pressure, and timing need to be adjusted before welding begins.
Removal of the heating plate, pipe alignment, fusion pressure application, and holding time are all controlled manually through the hydraulic unit.
This requires the operator to remain actively involved throughout the welding process.
Overall Operational Experience
In practical use, a fully automatic machine offers a smoother and more controlled workflow with minimal manual intervention. Welding parameters are applied consistently, helping maintain stable welding quality.

By contrast, semi-automatic machines rely heavily on the skill and experience of the operator, who must manage each stage of the process manually.
2. Structural Differences
Beyond operation, the two types of machines also differ in structural design.
Hydraulic and Control System
· Fully automatic machines use a chip-controlled electrical and hydraulic system.
· Semi-automatic machines use a traditional electrical and hydraulic configuration.
Machine Frame
· Fully automatic machines are built with a heavy-duty frame and include an automatic heating plate lifting mechanism.
· Semi-automatic machines do not include automatic plate lifting and rely on manual handling.
Clamp Inserts
· Fully automatic machines are equipped with precision-machined clamp inserts as standard.
· Semi-automatic machines typically come with die-cast clamp inserts.
