High Level Hydraulic Butt Fusion Welding Machine Semi Automatic Butt Welding Machine FusingX 200
- Model
- FX200
Item specifics
- OEM&ODM
- Support
- Welding Range
- 63 mm – 200 mm (with clamp inserts)
- Frame
- Steel welded, reinforced structure
- Hydraulic Unit
- Integrated hydraulic & electrical system
- Heating Plate
- Cast aluminum, PEFT coating, ±7ºC control
- Facer
- Gear transmission, HSS blades, copper motor
- Power Supply
- Aviation plug, heavy-duty power cord
- Portability
- Handles & wheels, compact enclosure
Review
Description
FX200 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）
Key Highlights
· Robust Frame: Heavy-duty steel welded design for stable performance
· Innovative HPU: Smart hydraulic system with fast switching & easy operation
· Precision Heating Plate: Stable temperature control with anti-stick coating
· Durable Facer: Gear-driven with powerful motor and HSS double-edge blades
· Single-Size Clamp Inserts: Improve efficiency and accuracy across pipe sizes

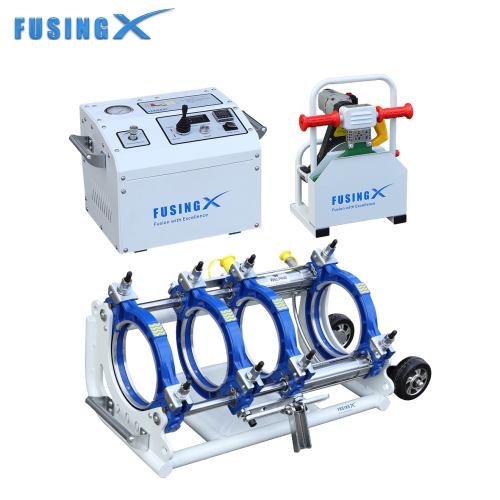

Product Overview
The FX200 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 63mm to 200mm. With a reinforced frame, advanced hydraulic control, and precise heating technology, it offers contractors a reliable solution for municipal, industrial, and energy projects.
| Model No. | FX200 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 2PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | IS09001,CE | MOQ | No Limit |
After Service | Online | Material | Aluminium,Steel |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX200 |
| Suitable materials | PE, PP, PVDF |
| Range | 63-75-90-110-125-140-160-180-200mm |
Power supply | 220V |
Frequency | 50 Hz |
Total power | 3.95KW |
Heating plate | 1.8KW |
Planing tool | 1.4KW |
Hydraulic station | 0.75KW |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-10Mpa |
Temp.Deviation in Surface | ±7ºC |
| Total Weight | 142KG |
PRODUCT DETAILS MAP

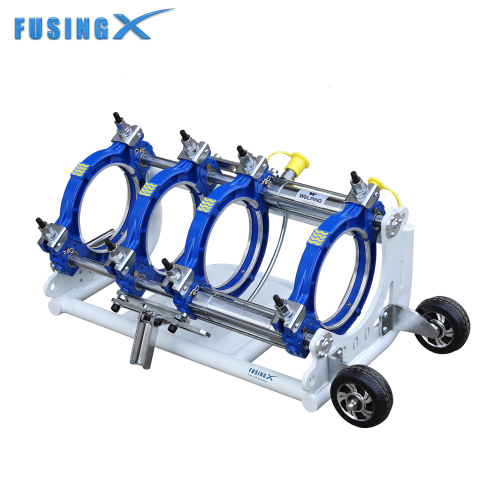

Frame(Carriage)
● Complete steel welded design, with complex reinforced structure, heavy-duty
● Clamping part, inner fine-machined
● Standard equipped with carrying handles and wheels, for easy transportation
● Qualified hydraulic cylinder with quick couplings, for easy installation

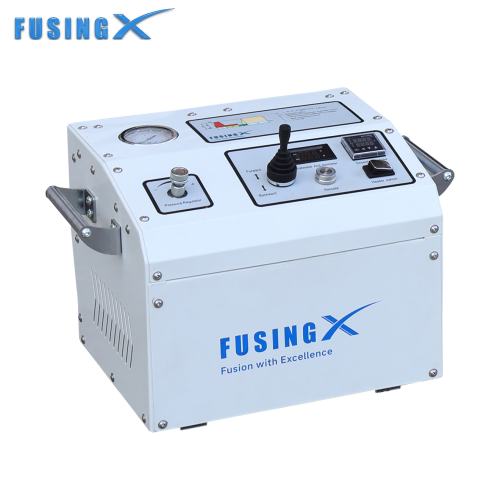

DynaFX™ HPU
● Integrated hydraulic and electrical control, for easy operation access
● Special designed hydraulic system, smart pressure control for pipe facing
● Compact and Enclosure design, shielding splash and dirt
● Featuring forward movement at 1X speed and reverse at 1.3X speed. Improves efficiency and reduces switching time.
Heating plate
● Cast aluminum body with built-in heating elements
● Anti-stick PEFT coating from Daikin
● Excellent teperature diavation control, less than 5℃
● Qualified aviation plug and heavy-duty power cord ensure operation safety
Facer (Milling Cutter)
● Full gear transmission structure, for steady and long-life performance
● Powerful copper-wiring motor
● Durable, double edges HSS blade

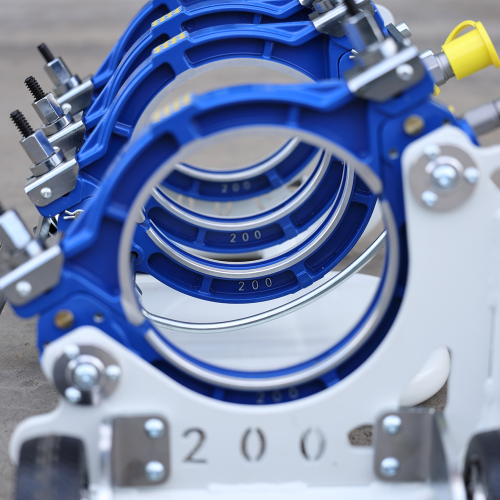

Single-size clamp inserts
● Cast aluminum clamp inserts
● From 200 mm down to 63 mm, each size only 2 pcs of clamp insert are required
● Significantly improves work efficiency as well as clamping accuracy
Tool holder
● Complete heating plate covers for better protection and heating conservation
● Wider and longer handles for better mobility
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
