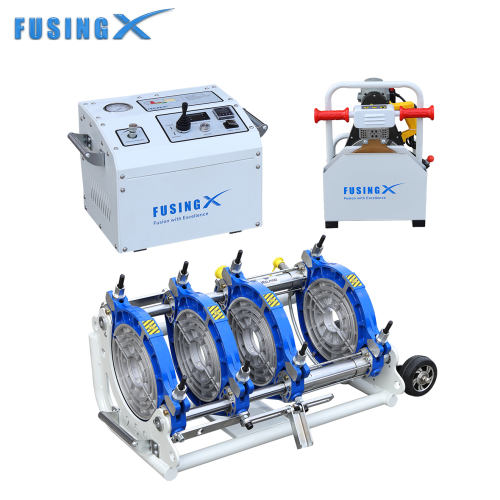

High Level Hydraulic Butt Fusion Welding Machine Semi Automatic Butt Welding Machine FusingX 250
- Model
- FX250
Item specifics
- OEM&ODM
- Support
- Welding Range
- 63 mm – 250 mm (with clamp inserts)
- Frame
- Steel welded, reinforced structure
- Hydraulic Unit
- Integrated hydraulic & electrical system
- Heating Plate
- Cast aluminum, PEFT coating, ±7ºC control
- Facer
- Gear transmission, HSS blades, copper motor
- Power Supply
- Aviation plug, heavy-duty power cord
- Portability
- Handles & wheels, compact enclosure
Review
Description
FX200 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）
Key Highlights
· Robust Frame: Heavy-duty steel welded design for stable performance
· Innovative HPU: Smart hydraulic system with fast switching & easy operation
· Precision Heating Plate: Stable temperature control with anti-stick coating
· Durable Facer: Gear-driven with powerful motor and HSS double-edge blades
· Single-Size Clamp Inserts: Improve efficiency and accuracy across pipe sizes
Product Overview
The FX250 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 63mm to 250mm. With a reinforced frame, advanced hydraulic control, and precise heating technology, it offers contractors a reliable solution for municipal, industrial, and energy projects.
| Model No. | FX250 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 2PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | IS09001,CE | MOQ | No Limit |
After Service | Online | Material | Aluminium,Steel |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX200 |
| Suitable materials | PE, PP, PVDF |
| Range | 63-75-90-110-125-140-160-180-200-225-250mm |
Power supply | 220V |
Frequency | 50 Hz |
Total power | 5.05KW |
Heating plate | 2.3KW |
Planing tool | 2.0KW |
Hydraulic station | 0.75KW |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-8Mpa |
Temp.Deviation in Surface | ±7ºC |
| Total Weight | 162KG |
PRODUCT DETAILS MAP

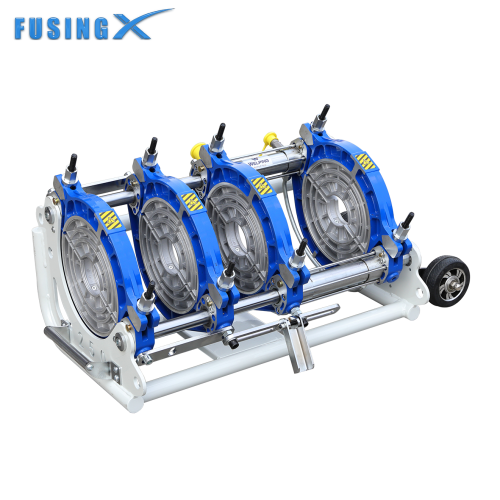

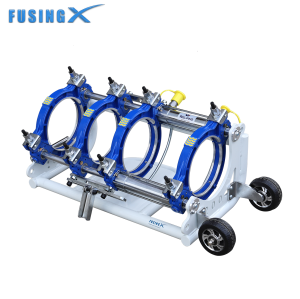

Frame(Carriage)
● Complete steel welded design, with complex reinforced structure, heavy-duty
● Clamping part, inner fine-machined
● Standard equipped with carrying handles and wheels, for easy transportation
● Qualified hydraulic cylinder with quick couplings, for easy installation

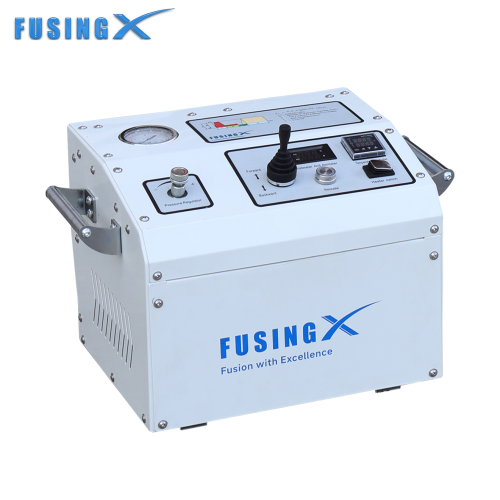

DynaFX™ HPU
● Integrated hydraulic and electrical control, for easy operation access
● Special designed hydraulic system, smart pressure control for pipe facing
● Compact and Enclosure design, shielding splash and dirt
● Featuring forward movement at 1X speed and reverse at 1.3X speed. Improves efficiency and reduces switching time.

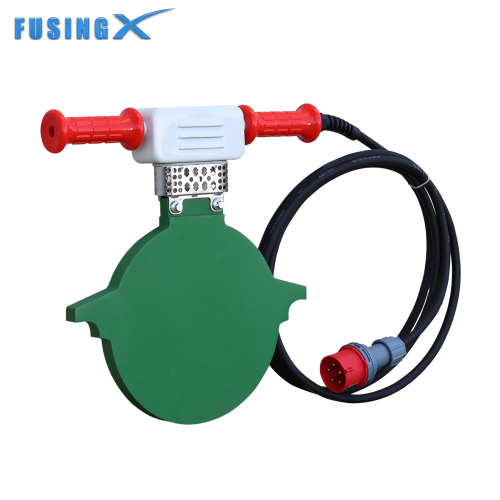

Heating plate
● Cast aluminum body with built-in heating elements
● Anti-stick PEFT coating from Daikin
● Excellent temperature diavation control, less than 5°C
● Qualified aviation plug and heavy-duty power cord ensure operation safety
Facer (Milling Cutter)
● Full gear transmission structure, for steady and long-life performance
● Powerful copper-wiring motor
● Durable, double edges HSS blades
Single-size clamp inserts
● Cast aluminum clamp inserts
● From 250 mm down to 90 mm, only 2 sets of clamp inserts are required
● Significantly improves work efficiency as well as clamping accuracy

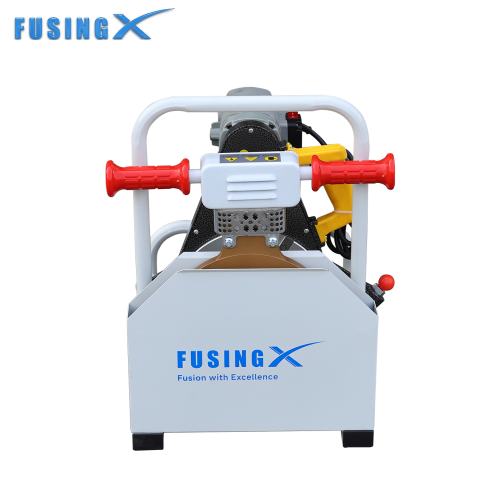

Tool holder
● Complete heating plate covers for better protection and heating conservation
● Wider and longer handles for better mobility
