FusingX PPR Angle Gate Valve | PP-R Stop Valve with Brass Stem | DN20–32
- Model
- DN20–32
Item specifics
- Material
- PP-R (Polypropylene Random Copolymer)
- Stem Material
- Brass
- Connection Type
- Socket fusion
- Structure
- Angle Valve (Gate Type)
- Size Range
- DN20–DN32
- Operation Type
- Manual (Handwheel)
- Working Temperature
- Up to 95°C
- Applicable Standards
- • PP-R system: ISO 15874
- Color Options
- Green / Orange
Review
Description

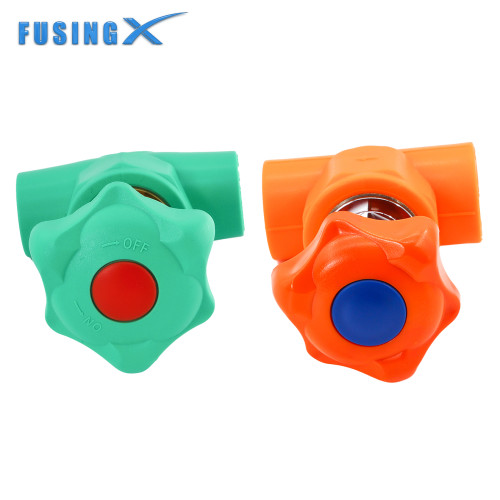

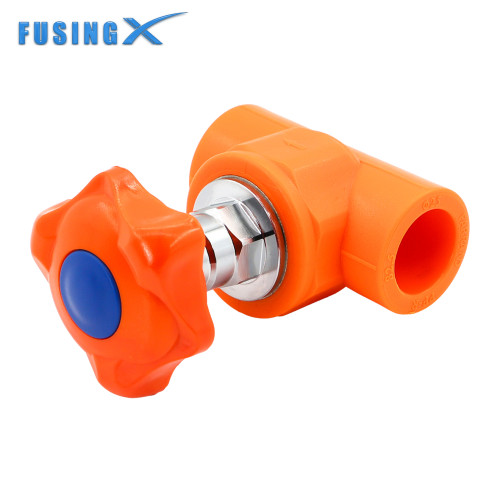

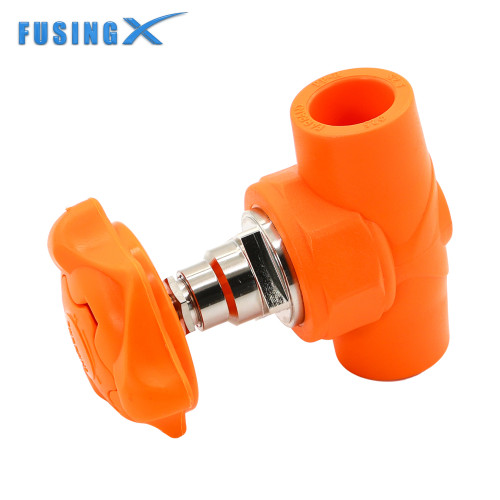

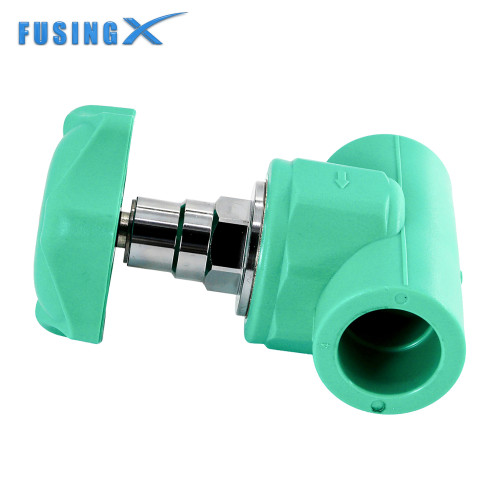

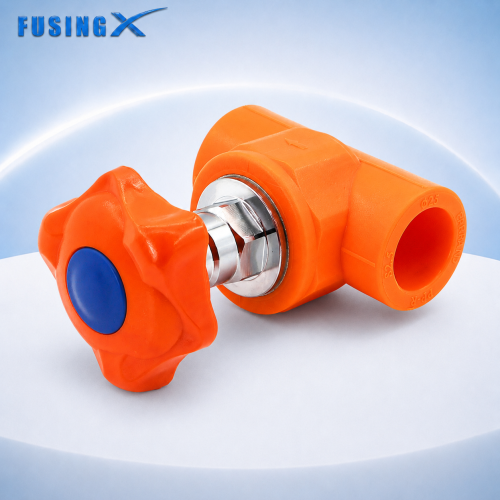

FusingX PP-R Angle Gate Valve
(Socket fusion ends with manual shut-off control)
Overview
The PPR angle gate valve is designed for flow control in PPR piping systems.
It features socket fusion connections and a brass stem, allowing reliable shut-off and smooth operation in water supply systems.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Stem Material: | Brass |
| Connection Type: | Socket fusion |
| Structure: | Angle Gate Valve |
| Operation Type: | Manual (Handwheel) |
Applicable Standards: | • PP-R system: ISO 15874 |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) |
Φ20 | 20 |
Φ25 | 25 |
Φ32 | 32 |
Key Features
Angle Flow Design
90° angle design simplifies pipeline routing and reduces the need for additional fittings.
Brass Core Structure
Brass valve stem and internal components ensure stable sealing and reliable shut-off performance.
Smooth Operation
Handwheel design allows smooth operation with stable control during opening and closing.
Multiple Variants
Available in green or orange, with brass or nickel-plated brass inserts.
Details
Handwheel & Stem
Smooth handwheel and stem design for stable and easy operation.

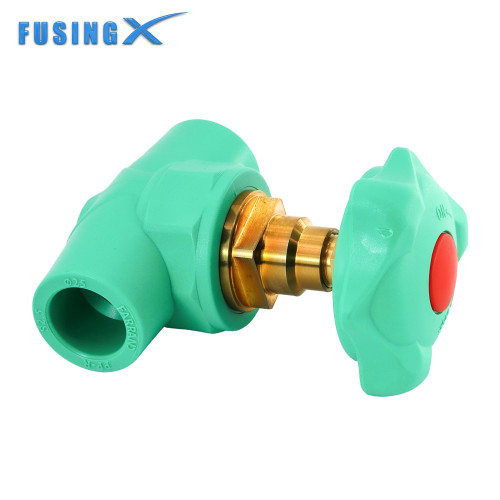

Brass Internal Structure
Brass internal components ensure reliable sealing and durability.
Socket Connection End
Socket ends ensure secure and leak-free fusion with PP-R pipes.
Installation
· Heat the PP-R pipe and valve socket using a fusion welding machine
· Insert the pipe into the socket without rotation
· Allow sufficient cooling time
· Operate the handwheel to check smooth opening and closing
Applications
Widely used in PP-R piping systems for flow control in:
· Municipal water supply
· Residential plumbing systems
· Commercial piping systems
· Industrial water distribution
