FusingX PPR Female Socket | PPR x Brass Female Thread Fitting | DN20–63
- Model
- S20–S63 × 1/2"–2" (F)
Item specifics
- Product Type
- PPR Female Thread Socket
- Material
- PPR + Brass Insert
- Size Range
- DN20–DN63
- Thread Type
- Female Thread (F)
- Color
- Green / Orange
- Connection Type
- Socket Fusion + Threaded Connection
- Working Temperature
- Up to 95°C
- Standard
- ISO 15874 / DIN 8077/8078
- Application
- Water supply systems, residential and commercial piping
Review
Description

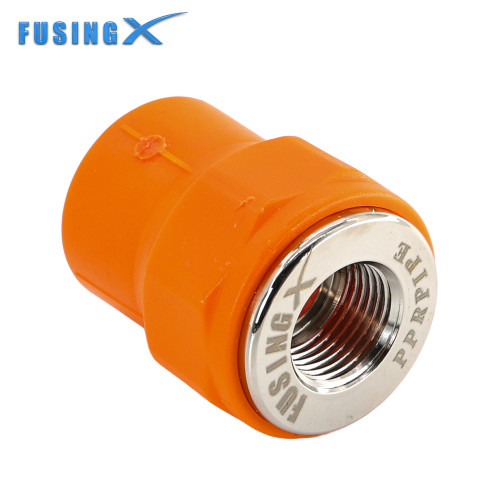

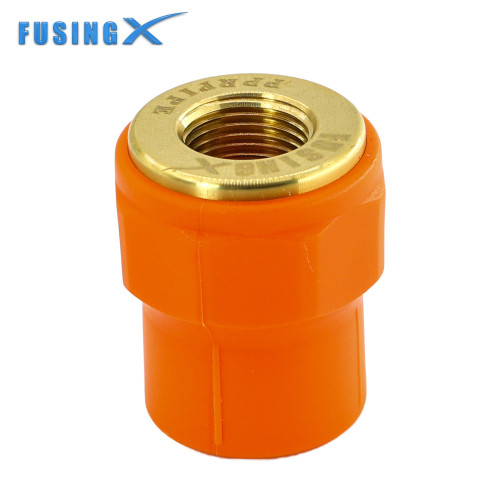

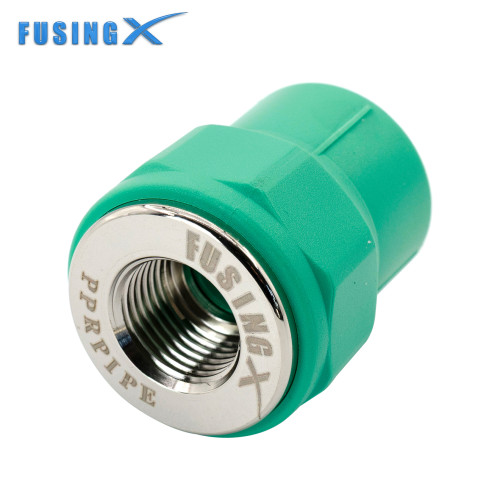

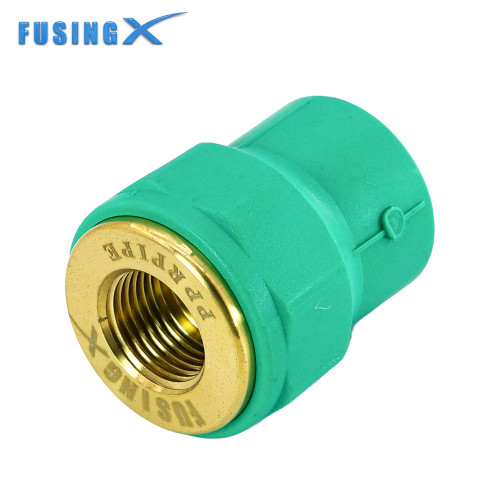

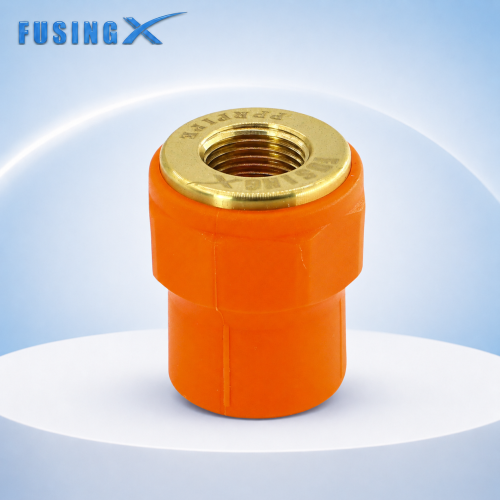

FusingX PP-R Female Thread Socket
(Socket fusion end with female threaded brass insert)
Overview
The PPR female socket is designed to connect PPR pipes with male threaded fittings.
It combines socket fusion on one side and a brass female thread on the other, allowing flexible connection within piping systems.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Female thread |
| Socket: | Tee |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Unit Price | Thread (inch) |
S20×1/2F | 20 | 1/2" |
S20×3/4F | 20 | 3/4" |
S25×1/2F | 25 | 1/2" |
S25×3/4F | 25 | 3/4" |
S32×1/2F | 32 | 1/2" |
S32×3/4F | 32 | 3/4" |
S32×1"F | 32 | 1" |
S40×1 1/4F | 40 | 1 1/4" |
S50×1 1/2F | 50 | 1 1/2" |
S63×2"F | 63 | 2" |
Key Features
Female Thread Connection
Precision-machined female thread for secure connection with male threaded fittings.
Socket Fusion End
Socket end is designed to match standard PP-R fusion dimensions.

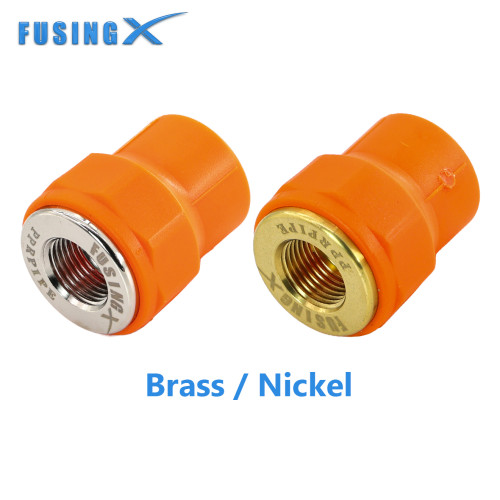

Metal Insert Options
Available with brass or nickel-plated brass insert options.
Integrated Body Design
Compact PP-R body with embedded brass insert for stable structure.
Details
Female Thread
Precision-machined internal thread for connection with male threaded fittings.
Socket End
Designed to match standard PP-R fusion dimensions.
Integrated Body
Integrated PP-R body with embedded brass insert for stable structure.
Installation
· Heat the PPR pipe and socket using a fusion welding machine
· Insert the pipe into the socket without rotation
· Allow proper cooling time
· Connect threaded part with compatible fittings
Applications
Widely used in:
· Municipal water supply
· Residential plumbing systems
· Commercial piping systems
· Industrial water distribution
