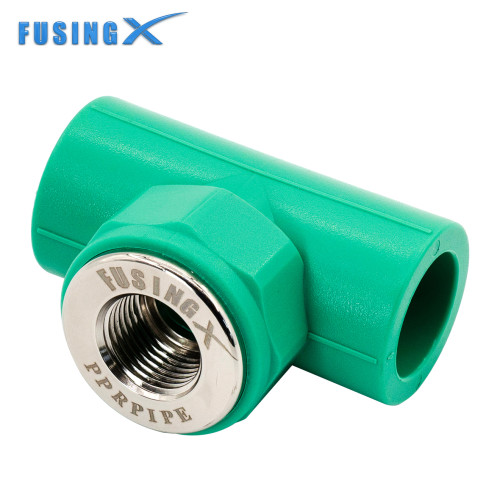

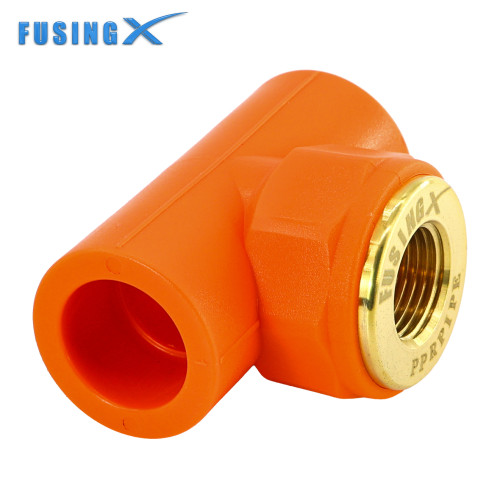

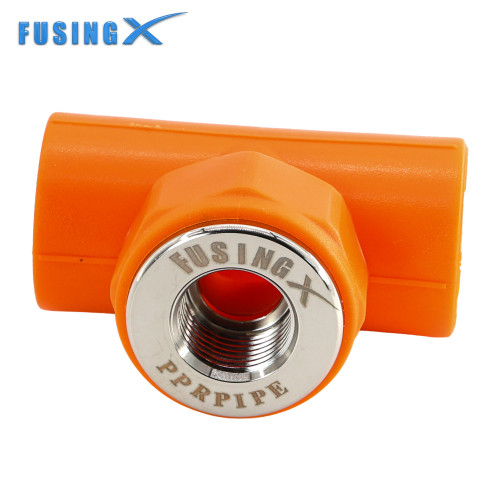

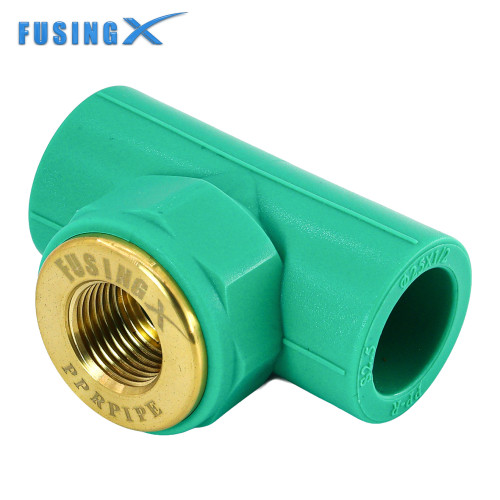

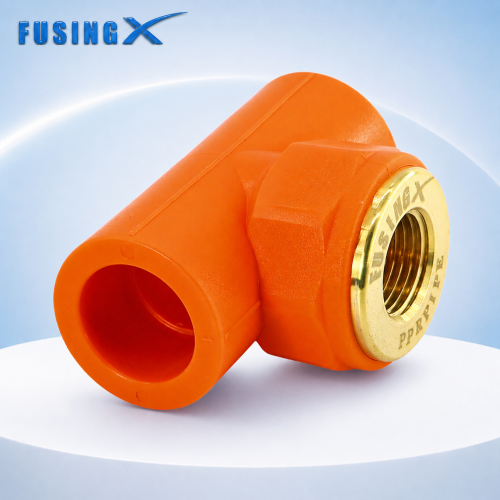

FusingX PPR Female Thread Tee | PPR x Brass Female Thread Fitting | DN20–63
- Model
- T20–T63 × 1/2"–2" (F)
Item specifics
- Product Type
- PPR Female Thread Tee
- Material
- PPR + Brass
- Insert Material
- Brass / Nickel-Plated Brass
- Connection
- Socket Fusion x Female Thread

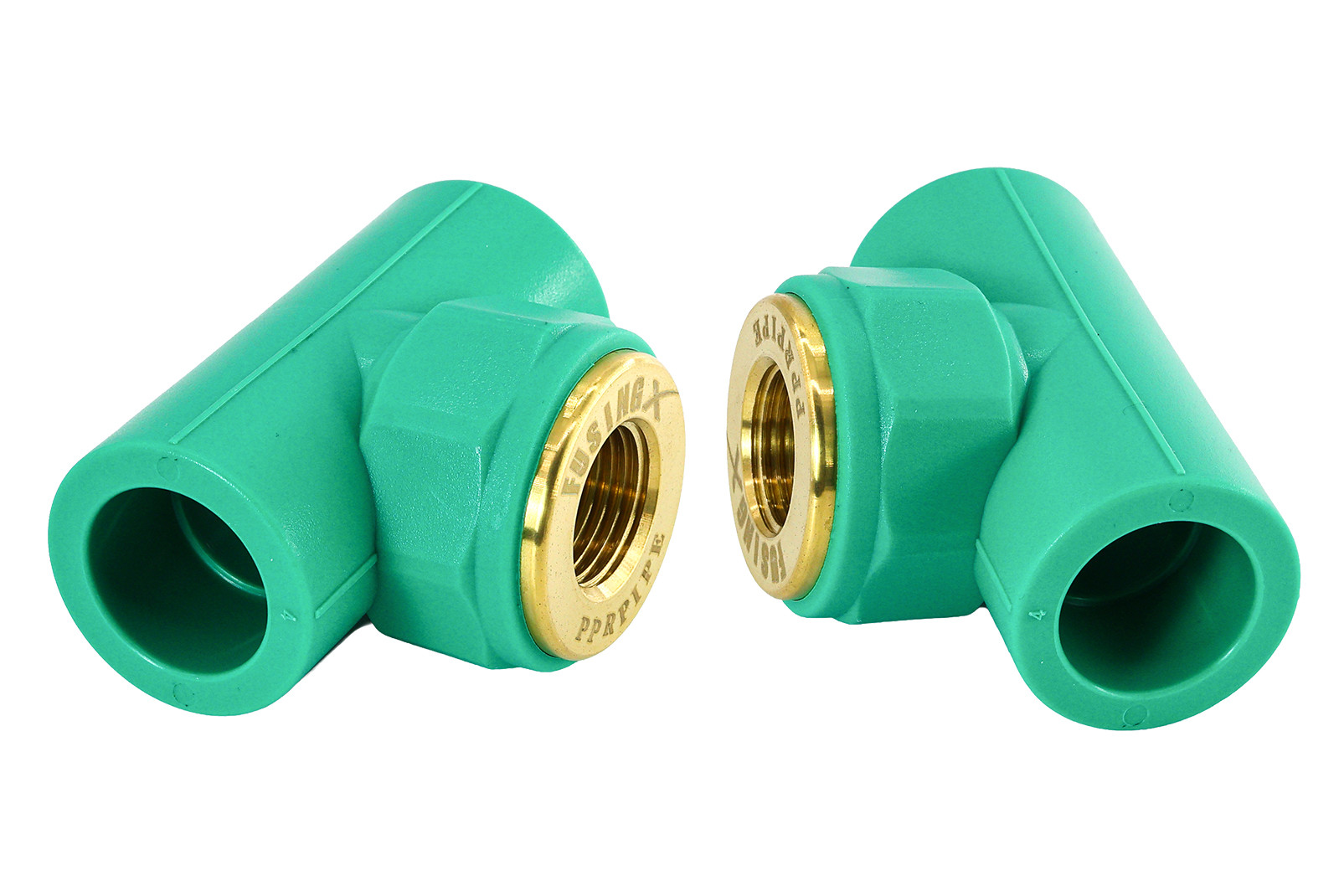

- Color
- Green / Orange
- Application
- Water Supply Systems
- Thread Standard
- BSP / NPT (Optional)
- Working Temperature
- up to 95°C
- Working Pressure
- PN16 / PN20
Review
Description

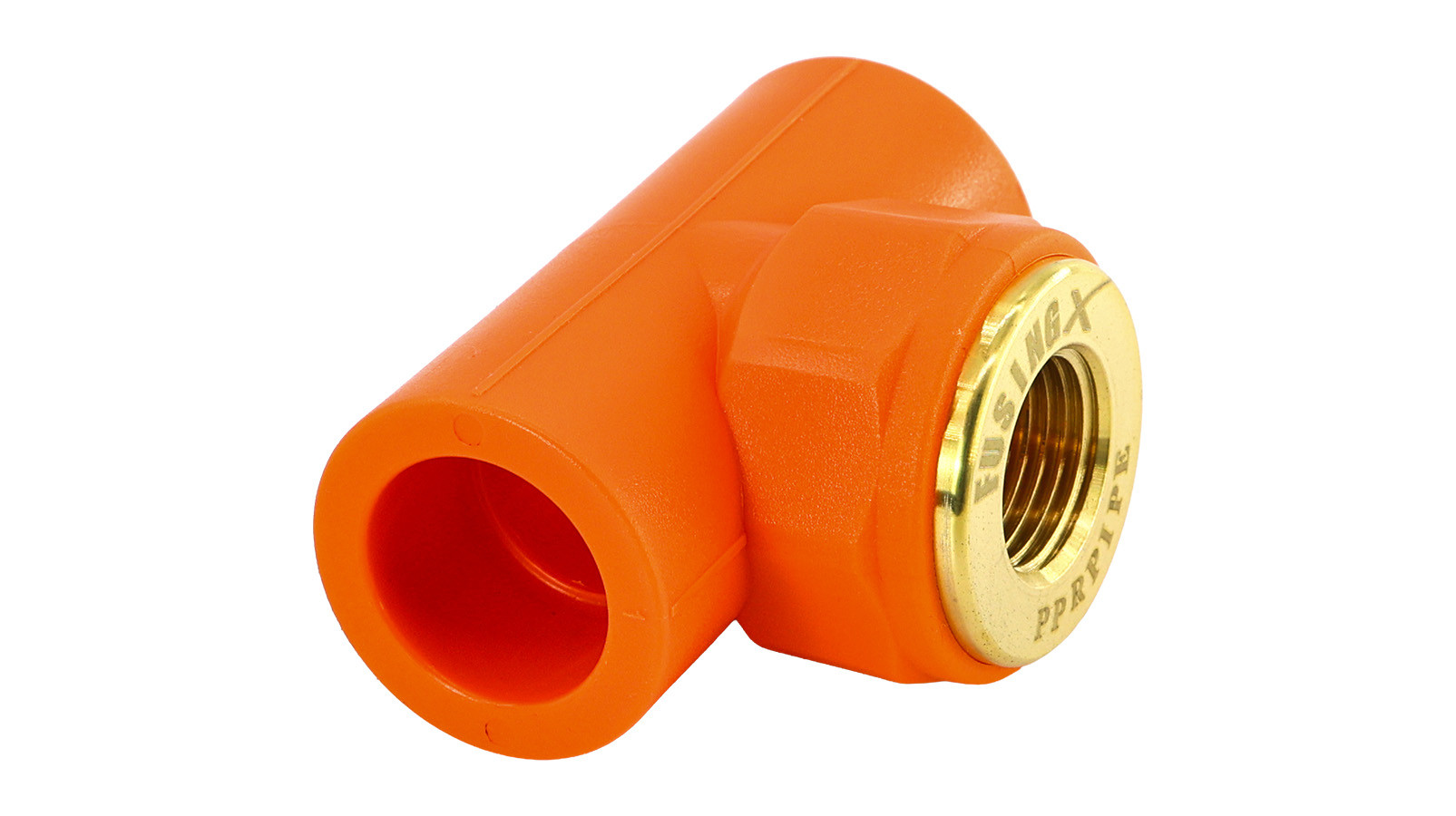

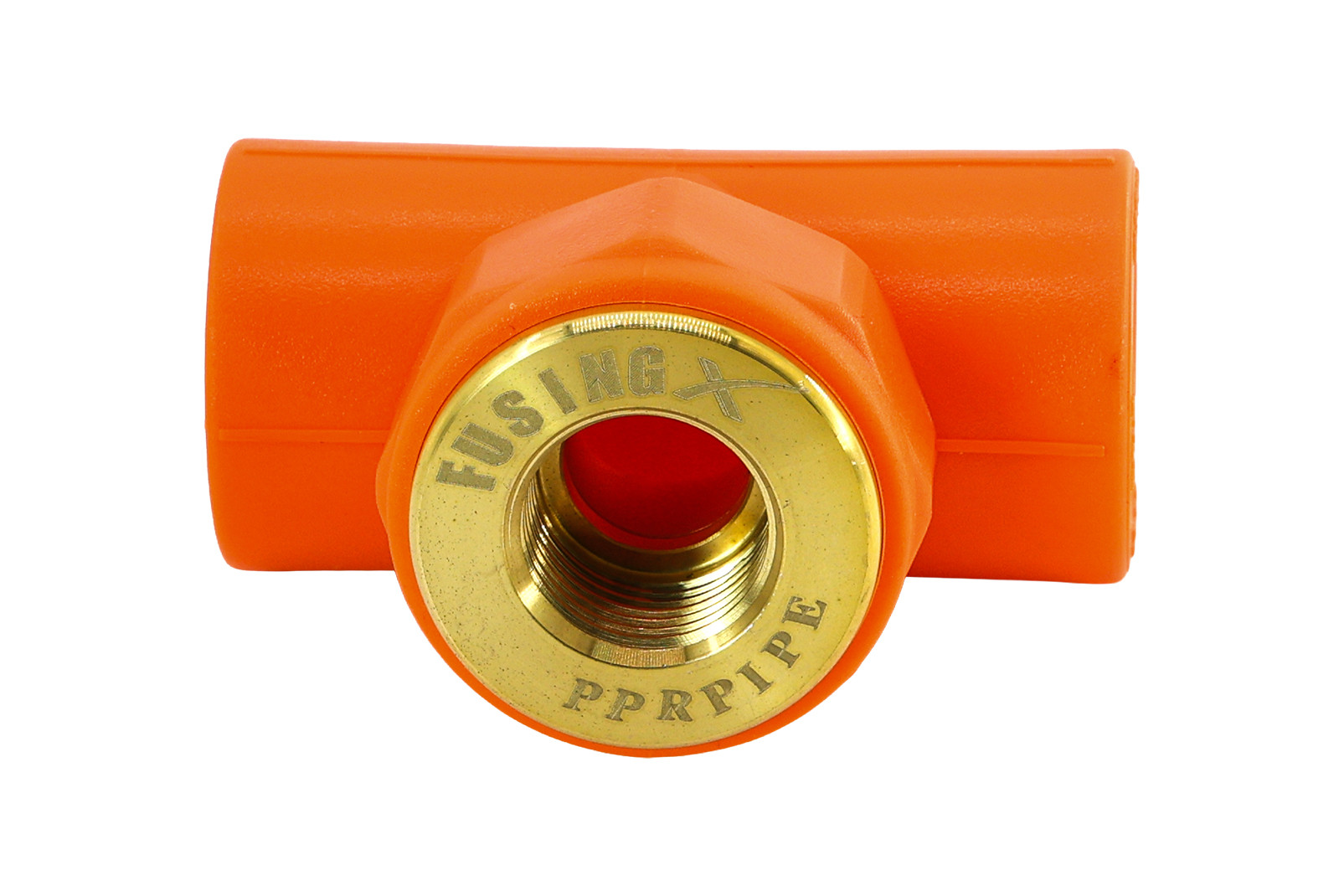

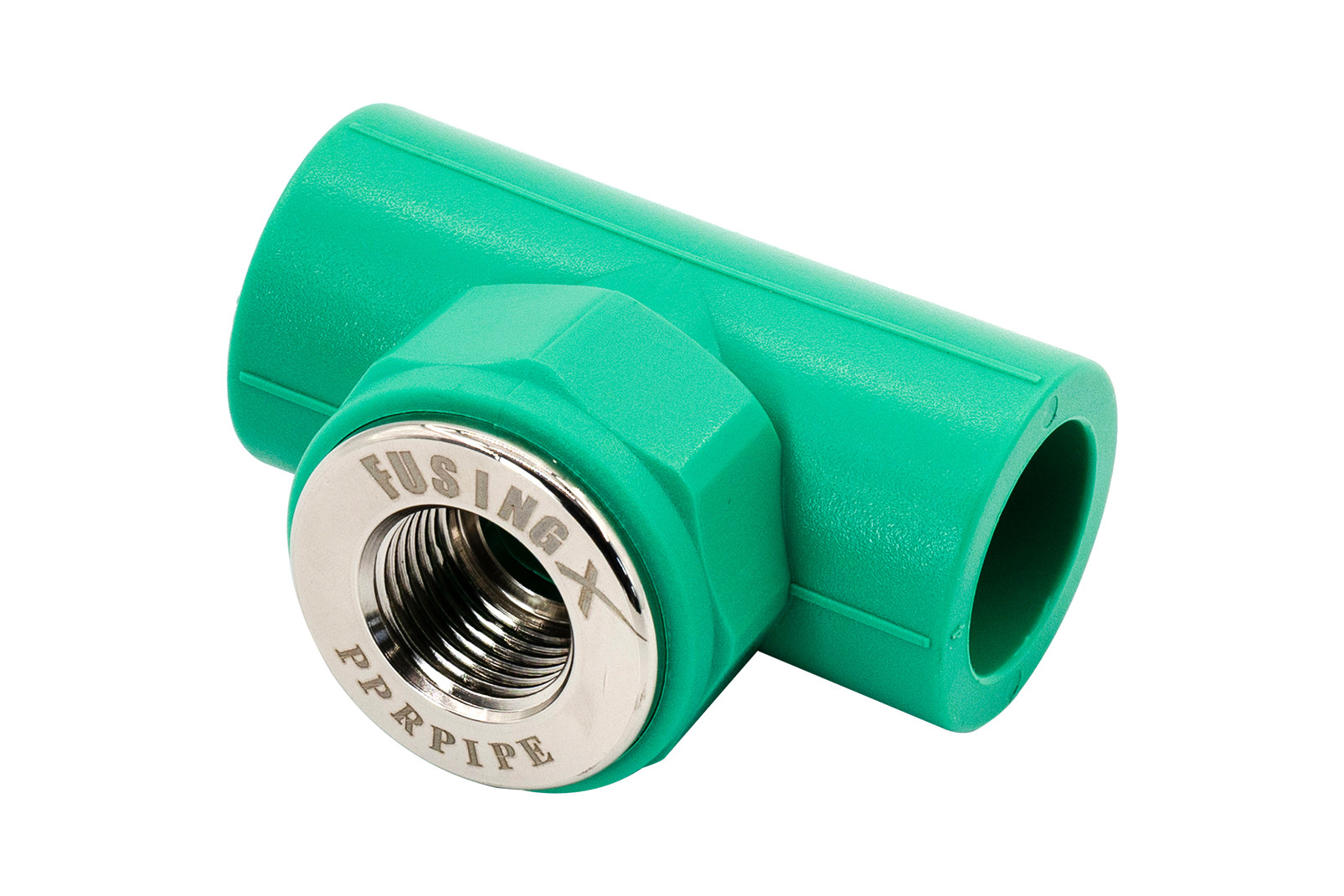

FusingX PP-R Female Thread Tee
(Socket fusion ends with female threaded metal insert)
Overview
PP-R female thread tee is designed for water supply systems, connecting PP-R pipes with threaded metal fittings in branch piping lines.
It features socket fusion ends for PP-R pipe connection and a female threaded metal insert for connection with standard threaded components.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Female thread |
| Structure: | Tee |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
T20×1/2F | 20 | 1/2" |
T20×3/4F | 20 | 3/4" |
T25×1/2F | 25 | 1/2" |
T25×3/4F | 25 | 3/4" |
T32×1/2F | 32 | 1/2" |
T32×3/4F | 32 | 3/4" |
T32×1F | 32 | 1" |
T40×1 1/4F | 40 | 1 1/4" |
T50×1 1/2F | 50 | 1 1/2" |
T63×2F | 63 | 2" |
Key Features
Female Thread Connection
Standard female thread for connection with metal fittings.
Socket Fusion Ends
Designed for PP-R pipe fusion on both socket ends.

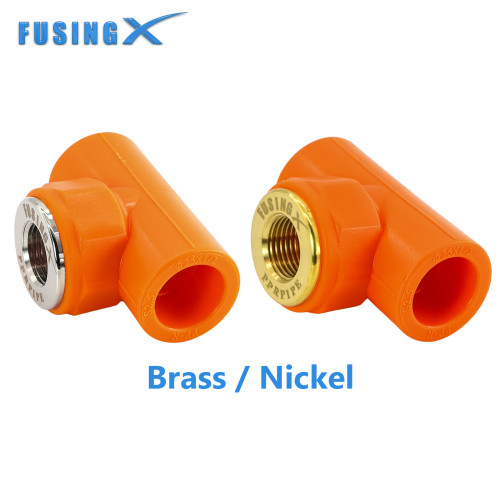

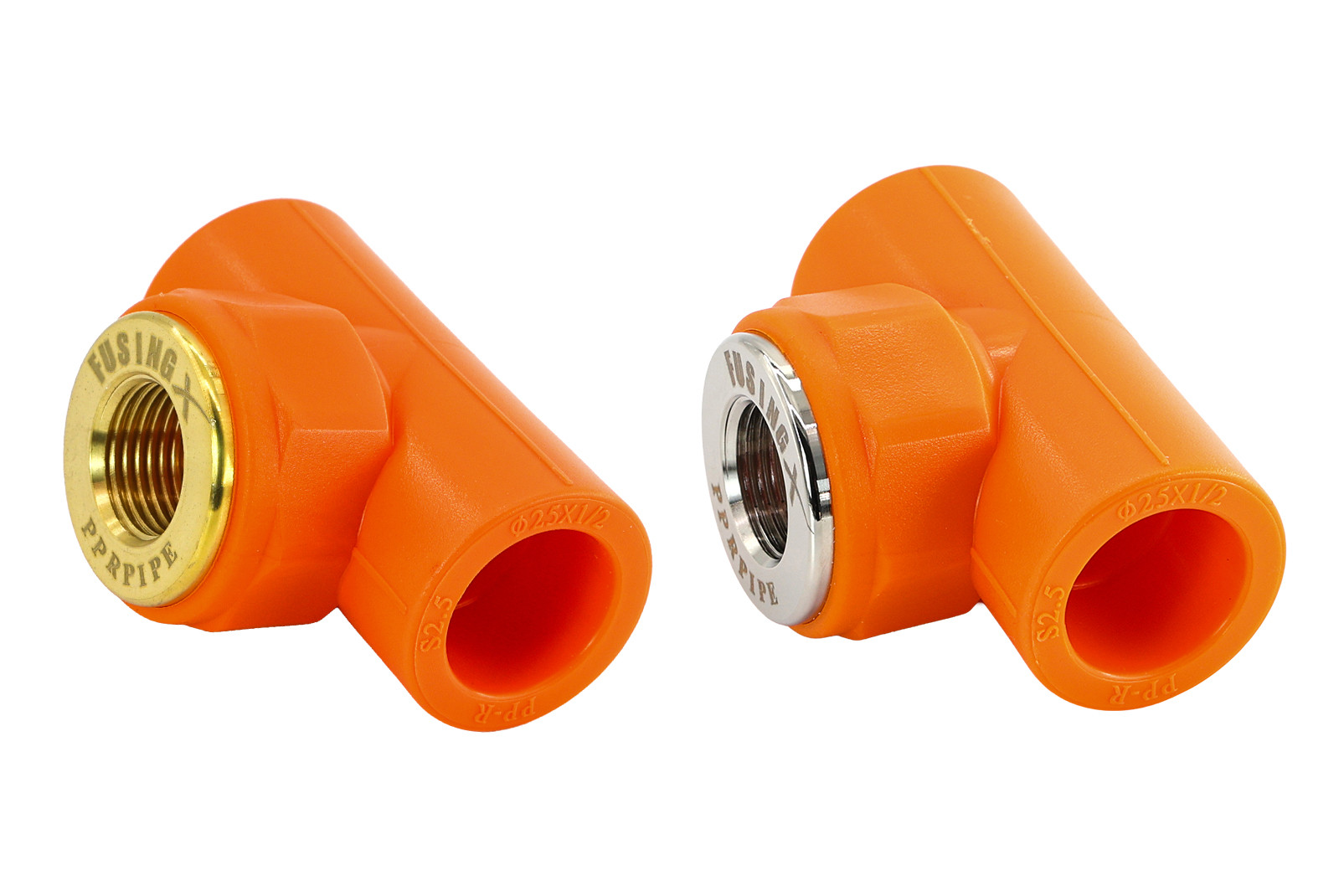

Metal Insert Options
Available in brass or nickel-plated brass versions.
Branch Connection Design
Tee structure for branch connection in PP-R piping systems.
Details

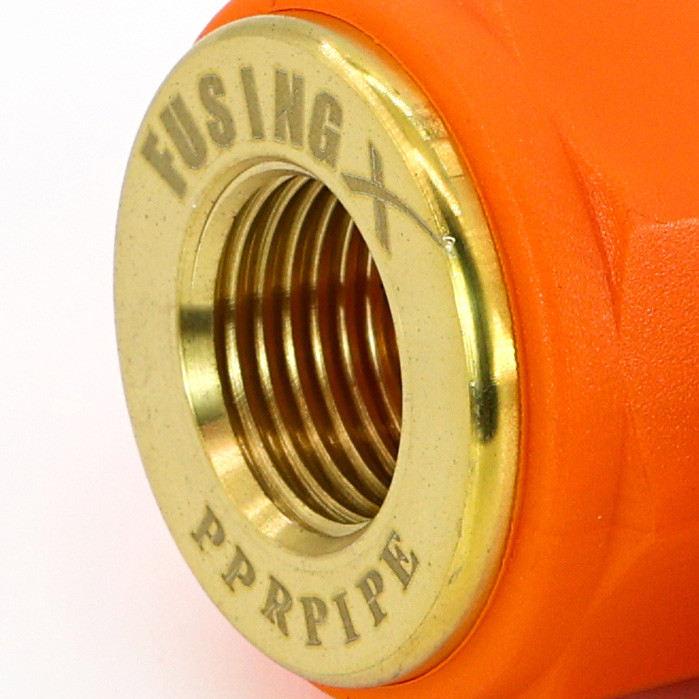

Thread
Internal thread is machined inside the metal insert for connection with threaded fittings.

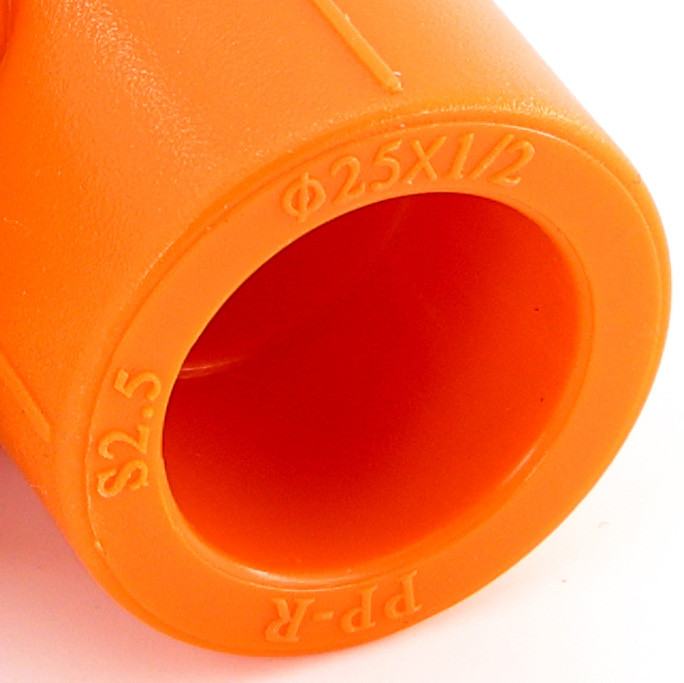

Socket End
Socket ends follow standard PP-R dimensions for fusion.

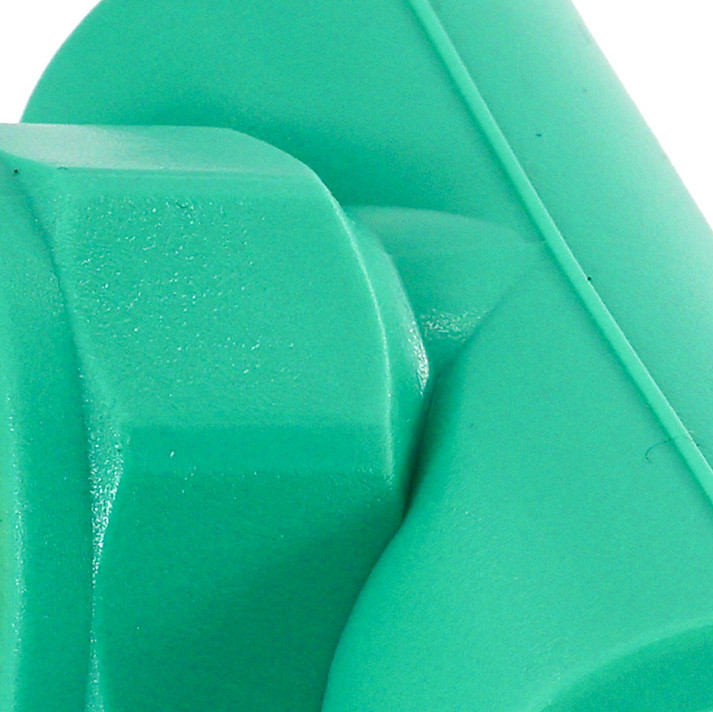

Body Structure
Integrated PP-R tee body with smooth transition to the metal insert.
Installation
· Installed by socket fusion welding on PP-R pipes.
· Female threaded side connects directly with standard metal fittings.
· Ensure proper alignment during installation to avoid stress on the metal insert.
