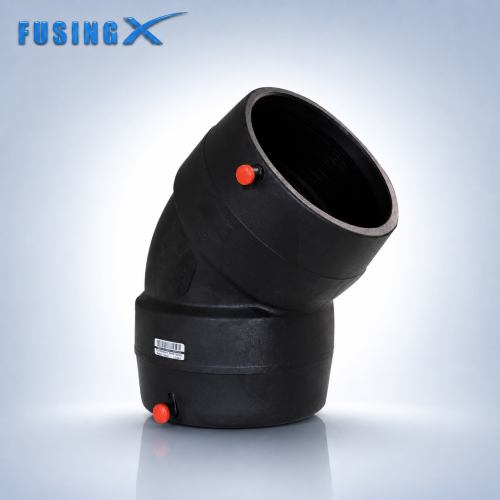

FusingX 45° Elbow Electrofusion Fittings For Reliable Pipe Fittings-SDR11
- Model
- 45° Elbow
Item specifics
- Color
- Black
- Pressure level
- 1.6Mpa
- Material
- PE100
- Connecting method
- Butt fusion welding
Review
Description
45° Elbow — Electrofusion Fitting
FusingX Electrofusion 45° Elbow
Product Overview
ELectrofusion Fitting 45° Elbow
· Material: PE100
· Pressure rating: PN16
· Size range: DN63–DN315
· Connection: Electrofusion
· Application: PE pipeline systems
Electrofusion Structure & Details
· Electrofusion terminals: Connect to standard electrofusion control units
· Heating coil area: Embedded coil inside the socket for electrofusion welding
Detail views of the body, socket surface, and terminal area
Selection Notes
· Select size according to pipe outside diameter (DN).
· Confirm required pressure class (e.g. PN16).
· Verify applicable project standards and welding parameters with the electrofusion control unit.
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
