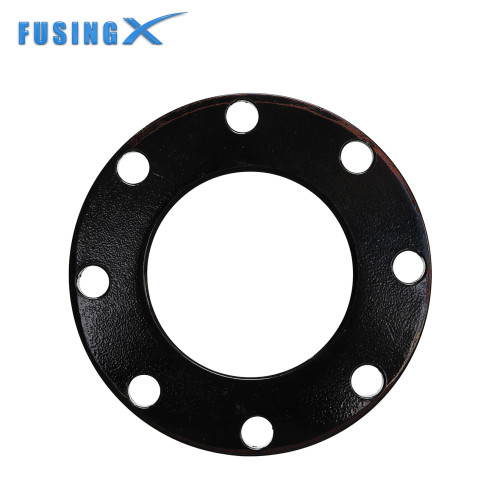

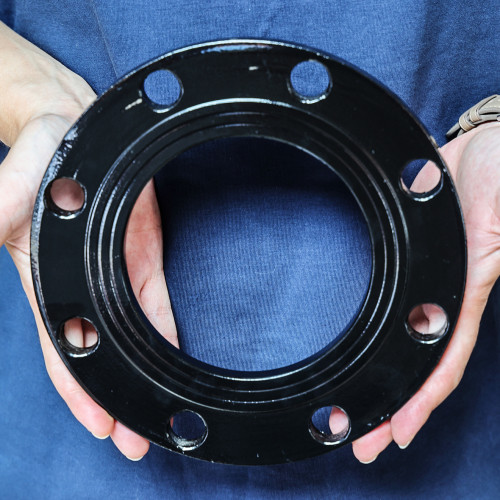

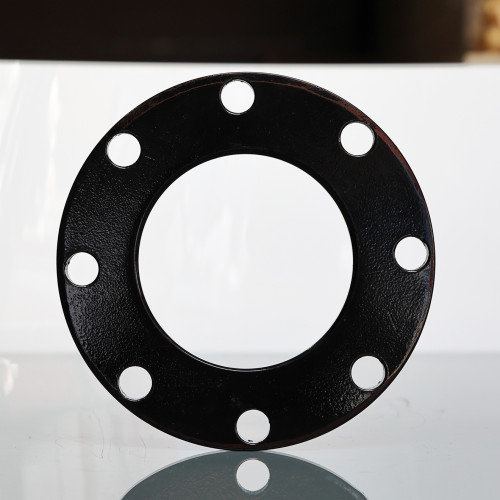

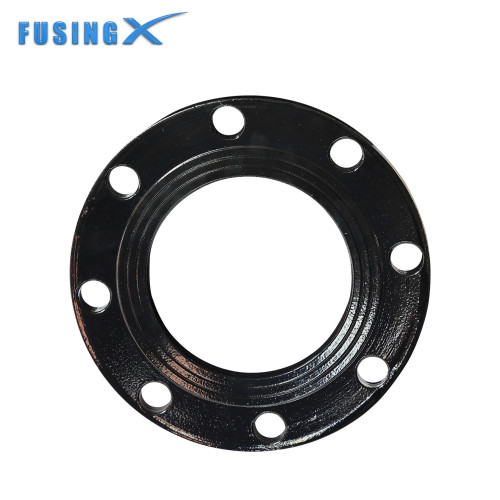

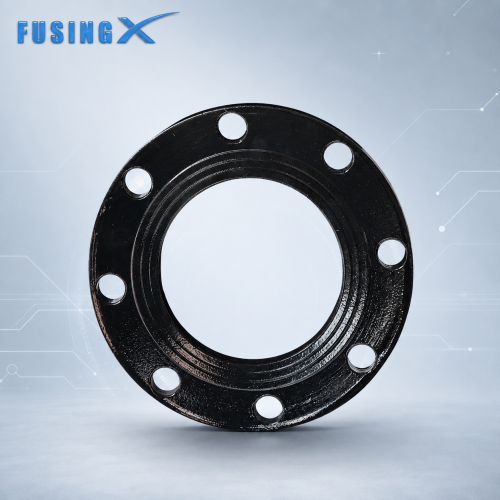

FusingX HDPE Flange Plate Butt Fusion Fitting | PE100 | DN63–DN1200 | PN16
- Model
- Flange Plate
Item specifics
- Color
- Black
- Pressure level
- 1.6Mpa
- Material
- PE100
- Connecting method
- Butt fusion welding
Review
Description
Flange Plate – Butt Fusion Fitting
FusingX Butt Fusion Flange Plate
Product Overview
Butt Fusion Flange Plate
· Material: PE100
· Pressure rating: PN16
· Size range: DN63–DN1200
· Connection method: Butt fusion
· Application: PE pipeline systems
Butt Fusion Structure & Welding Surfaces
· Flat and uniform fusion faces ensure consistent heat transfer
· Accurate Flange Plate geometry helps maintain alignment during fusion
· Stable wall thickness reduces welding deviation
Selection Notes
· Select size according to pipe outside diameter (DN63–DN1200)
· Confirm pressure class requirement (PN16)
· Ensure compatibility with butt fusion welding machines and parameters
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
