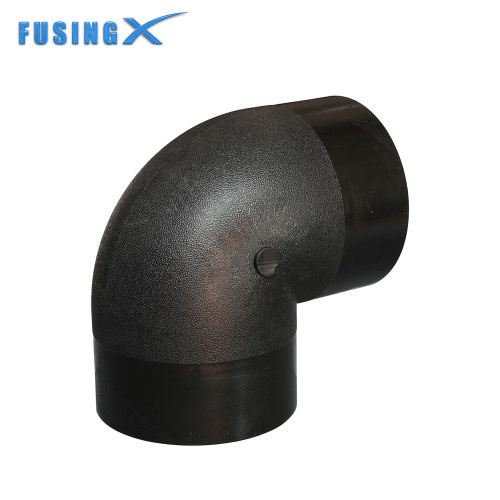

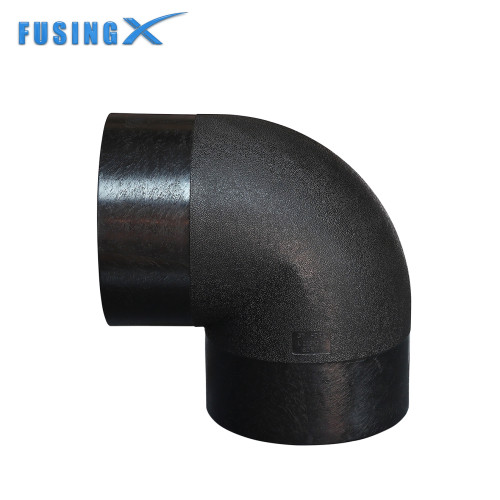

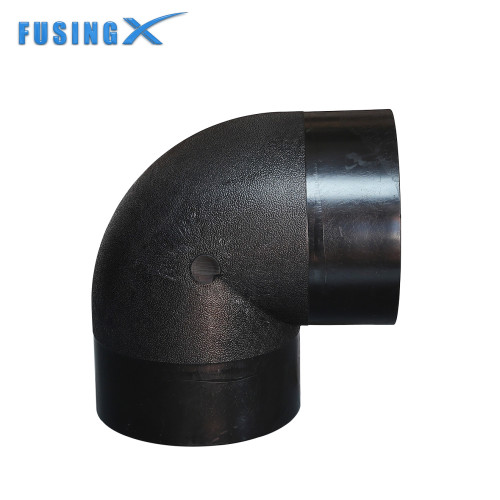

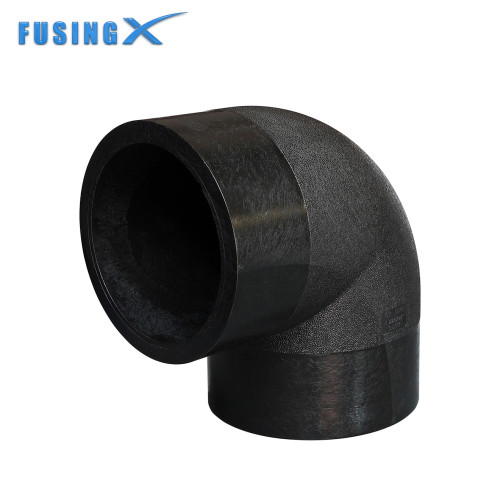

FusingX 90° Butt Fusion Elbow | PE100 | DN63–DN800 | PN16
- Model
- 90° Elbow
Item specifics
- Color
- Black
- Pressure level
- 1.6Mpa
- Material
- PE100
- Connecting method
- Butt fusion welding
Review
Description
90° Elbow – Butt Fusion Fitting

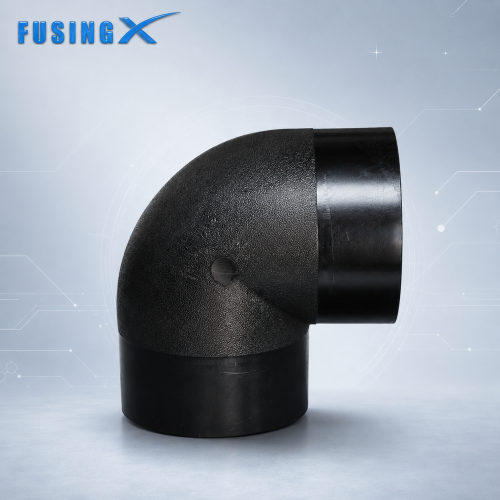

FusingX Butt Fusion 90° Elbow
Product Overview
Butt Fusion 90° Elbow
· Material: PE100
· Pressure rating: PN16
· Size range: DN63–DN800
· Connection method: Butt fusion
· Application: PE pipeline systems
Butt Fusion Structure & Welding Surfaces
· Flat and uniform fusion faces ensure consistent heat transfer
· Accurate elbow geometry helps maintain alignment during fusion
· Stable wall thickness reduces welding deviation

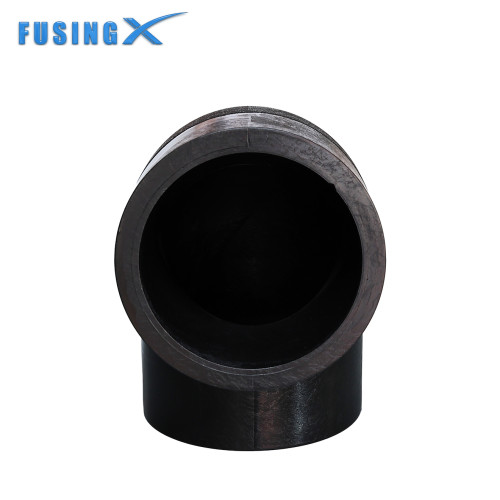

Detail views of body and welding faces
Selection Notes
· Select size according to pipe outside diameter (DN63–DN800)
· Confirm pressure class requirement (PN16)
· Ensure compatibility with butt fusion welding machines and parameters
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
