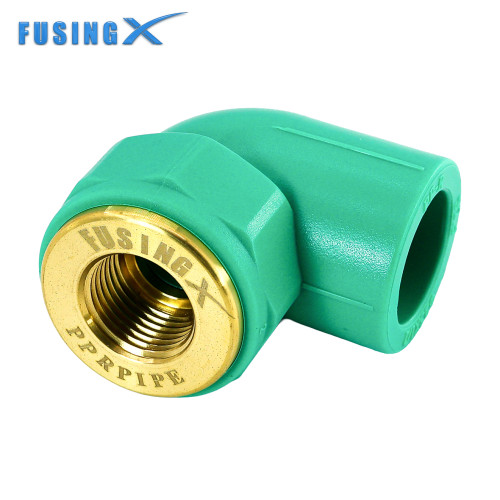

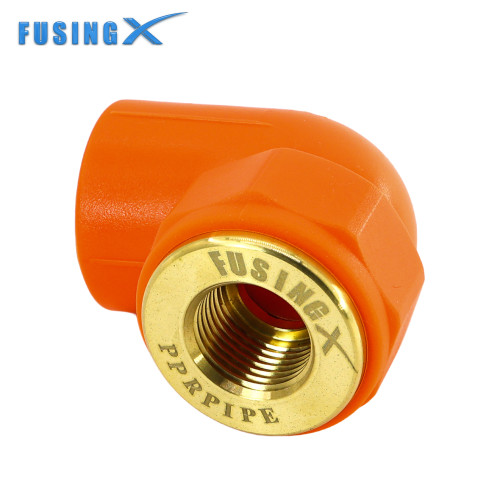

FusingX PPR Female Thread Elbow 90° | PPR x Brass Male Thread Fitting | DN20–32
- Model
- L20–L32 × 1/2"–1" (F)
Item specifics
- Product Type
- Female Thread Elbow
- Angle
- 90°
- Material
- PP-R
- Insert Type
- Brass / Nickel-plated Brass
- Connection
- Socket Fusion / Female Thread
- Color
- Green / Orange
- Application
- Water Supply Systems
Review
Description

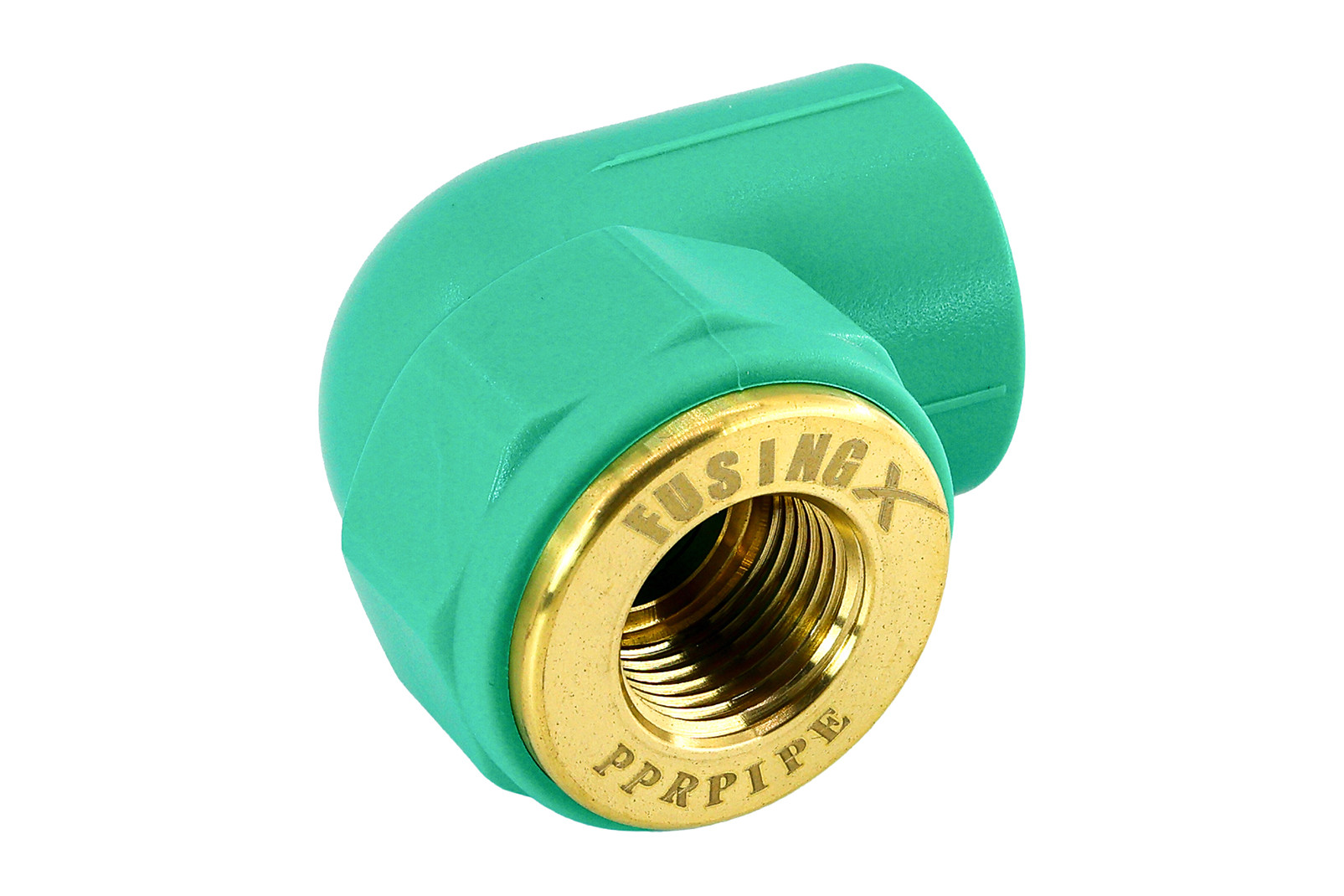

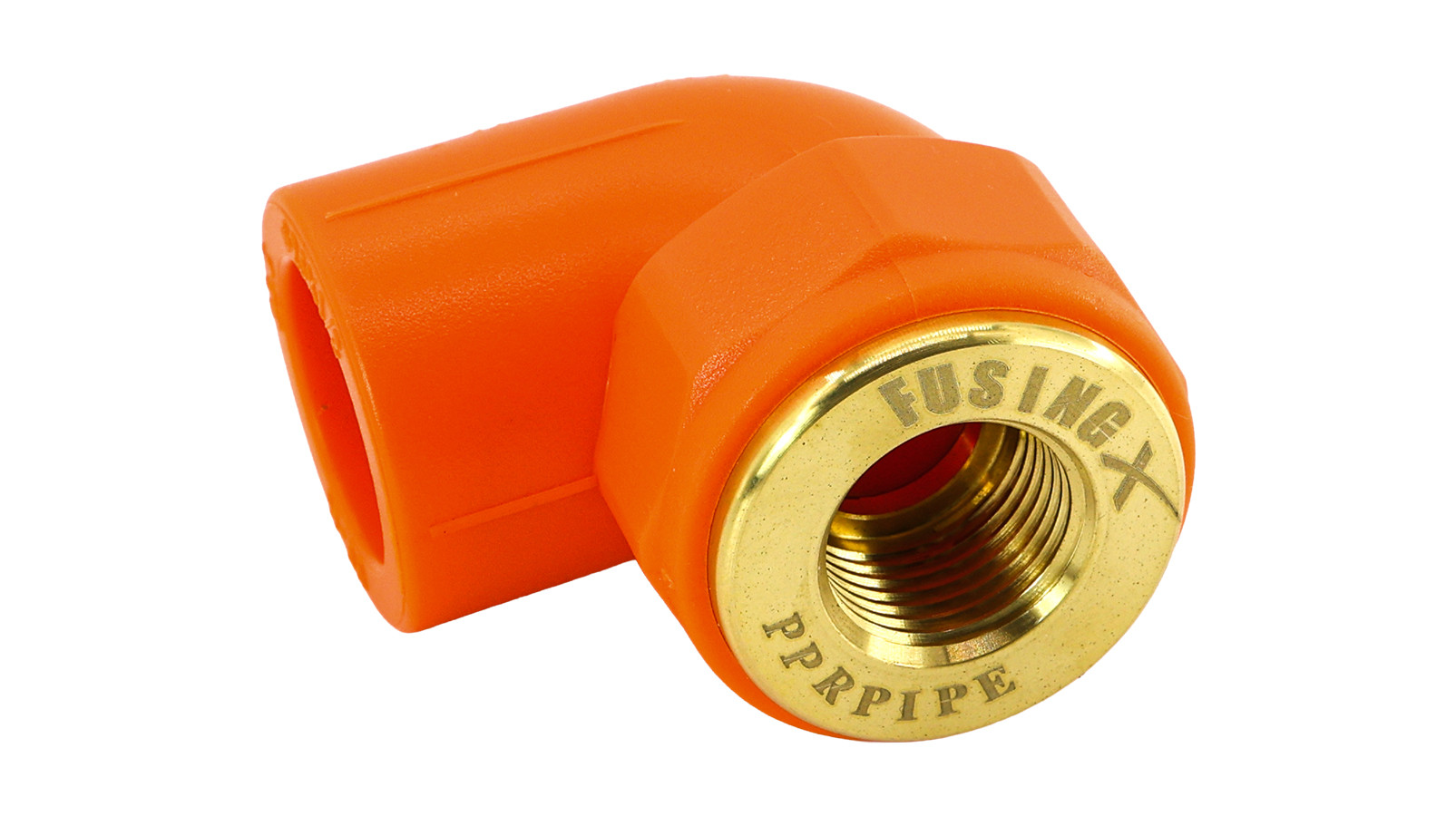

FusingX PP-R Female Thread Elbow (90°)
（Socket fusion end with female threaded metal insert）
Overview
PP-R female thread elbow (90°) is designed for water supply systems, connecting PP-R pipes with threaded metal fittings.
It features a socket fusion end on one side and a female threaded connection with an integrated metal insert on the other.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Female thread |
| Angle: | 90° |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
L20×1/2F | 20 | 1/2" |
L20×3/4F | 20 | 3/4" |
L25×1/2F | 25 | 1/2" |
L25×3/4F | 25 | 3/4" |
L32×1/2F | 32 | 1/2" |
L32×3/4F | 32 | 3/4" |
L32×1F | 32 | 1" |
Key Features
Threaded Connection
Standard female thread for connection with metal fittings.
Socket Fusion End
Designed for PP-R pipe fusion on the socket side.

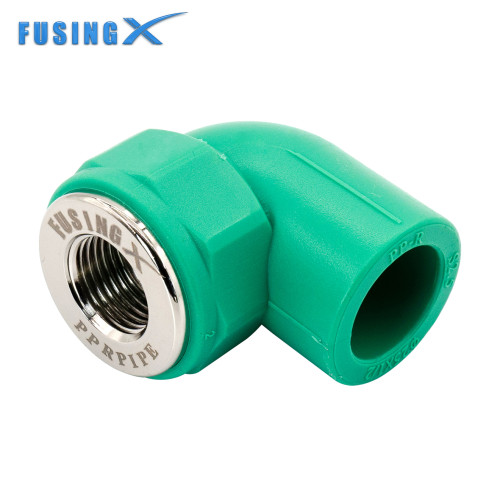

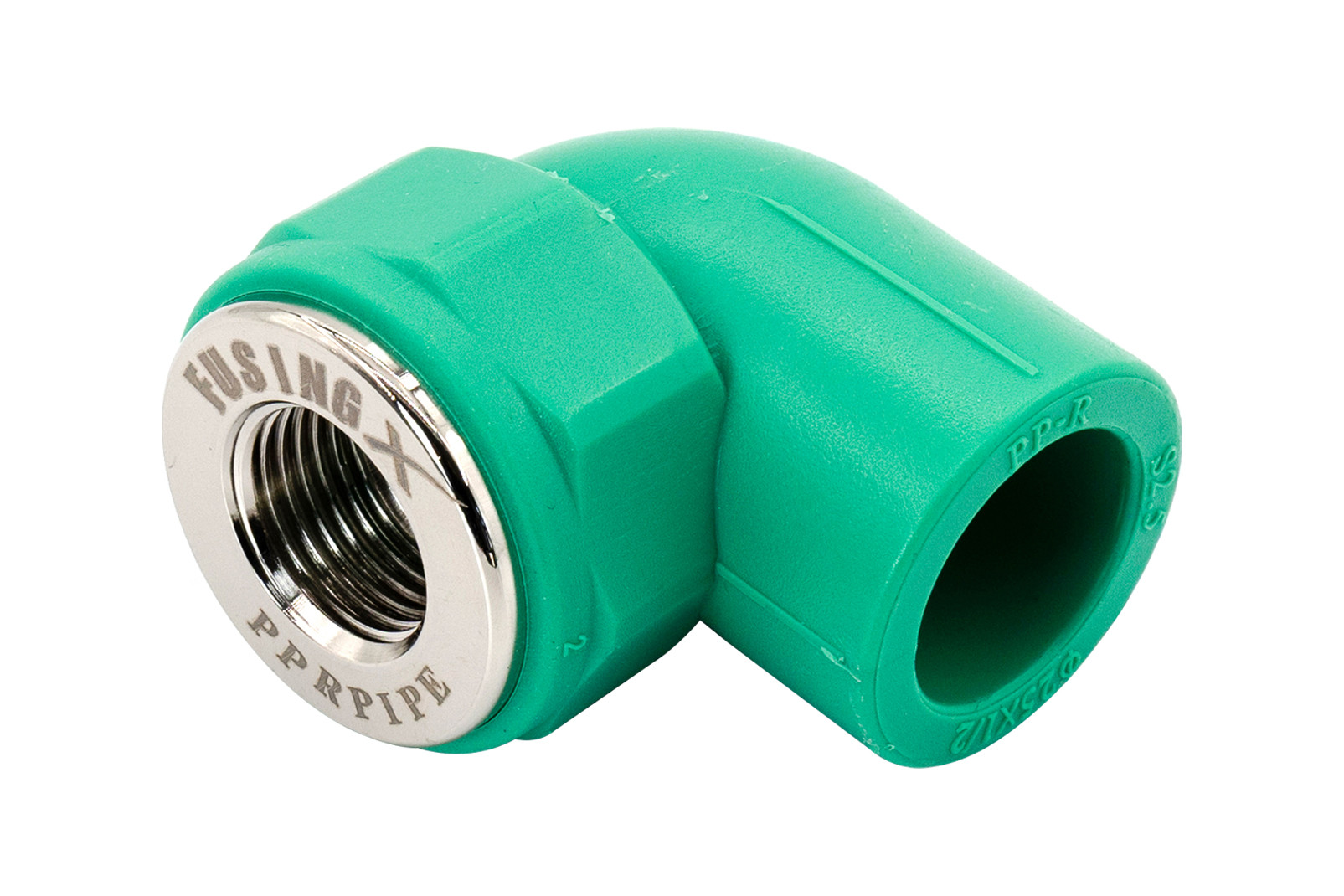

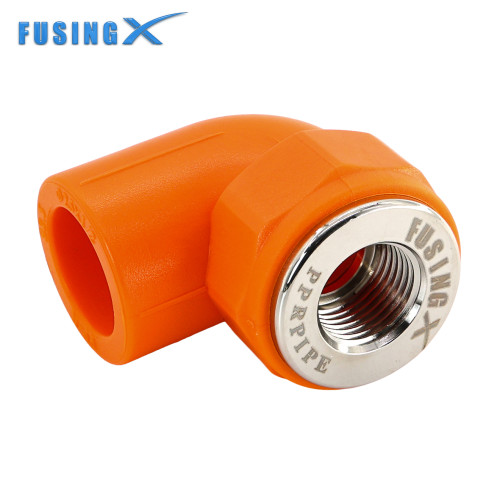

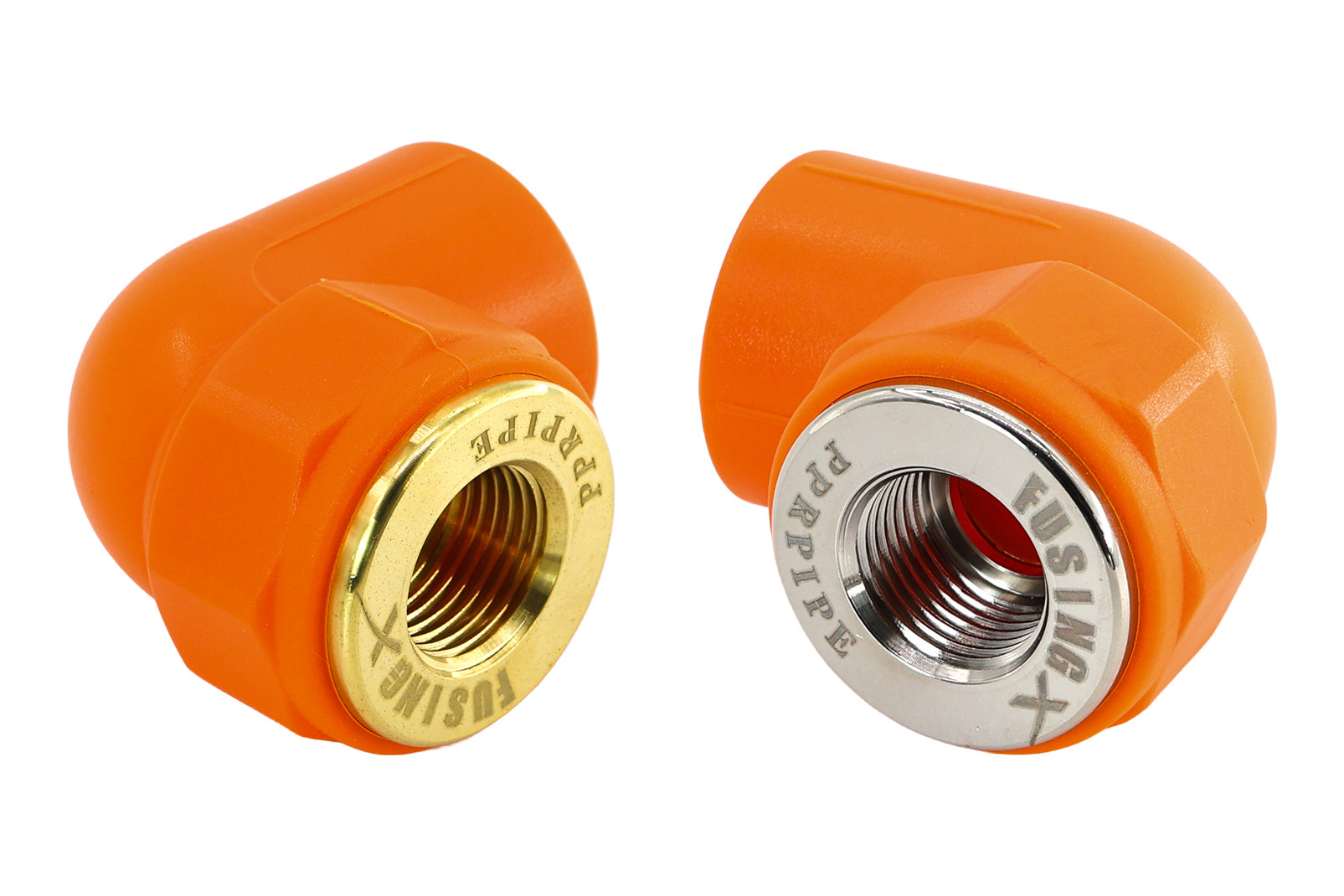

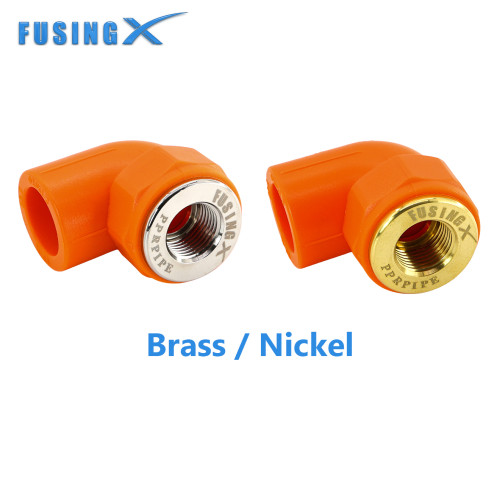

Metal Insert Options
Available in brass or nickel-plated versions.

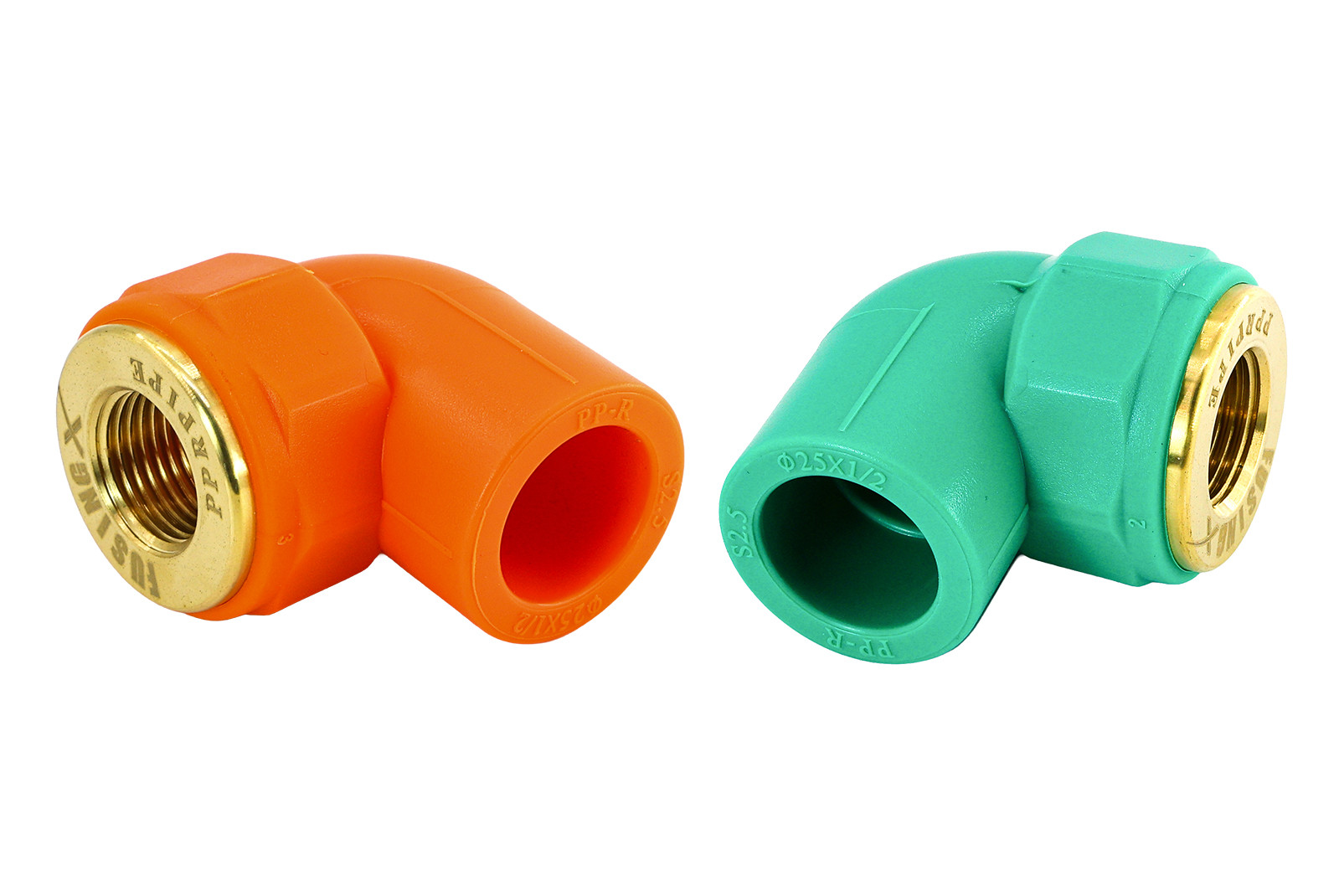

Two Color Options
Green and orange PP-R body available.
Details

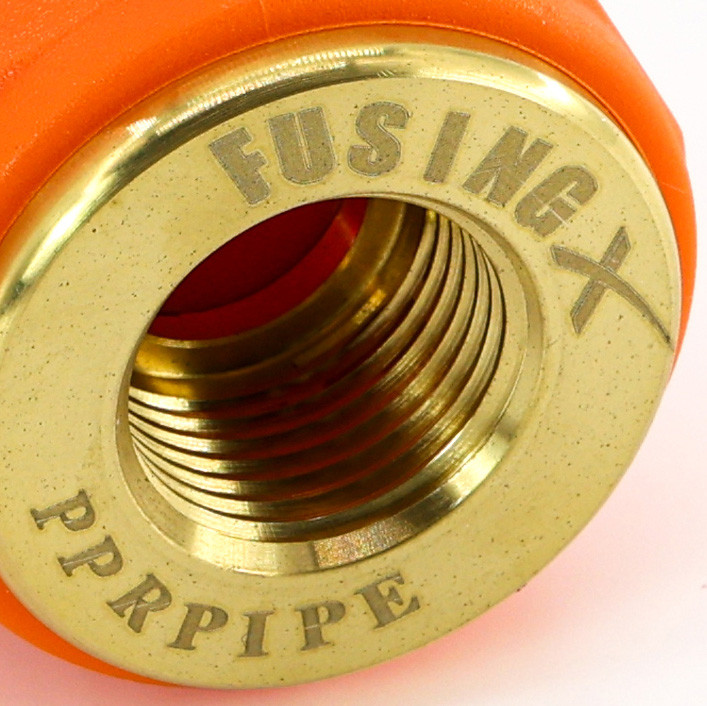

Thread
Internal thread is machined inside the metal insert.

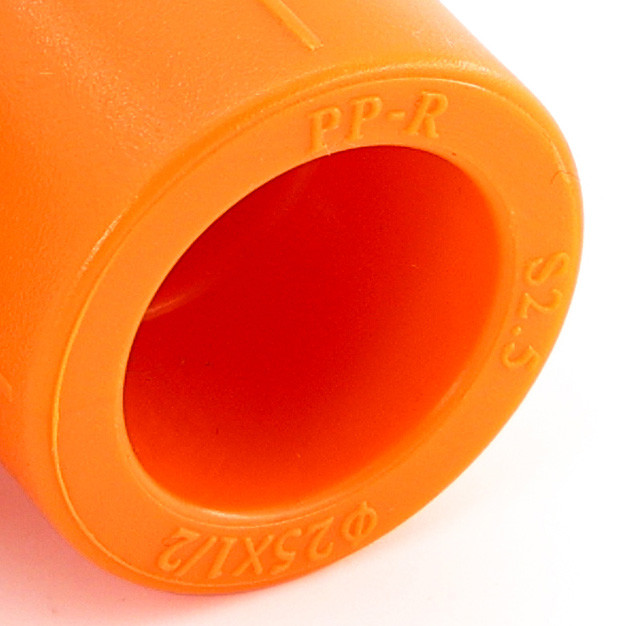

Socket End
Socket end follows standard PP-R dimensions for fusion.

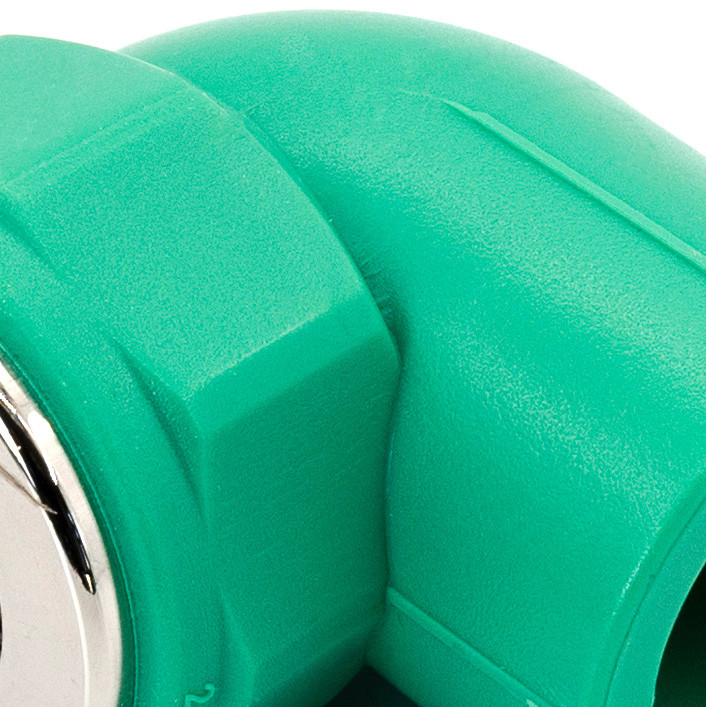

Body Structure
Integrated PP-R body with smooth transition to the insert.
Installation
- Installed by socket fusion welding on PP-R pipes.
- Threaded side connects directly with standard metal fittings.
- Ensure proper alignment during installation to avoid stress on the insert.
